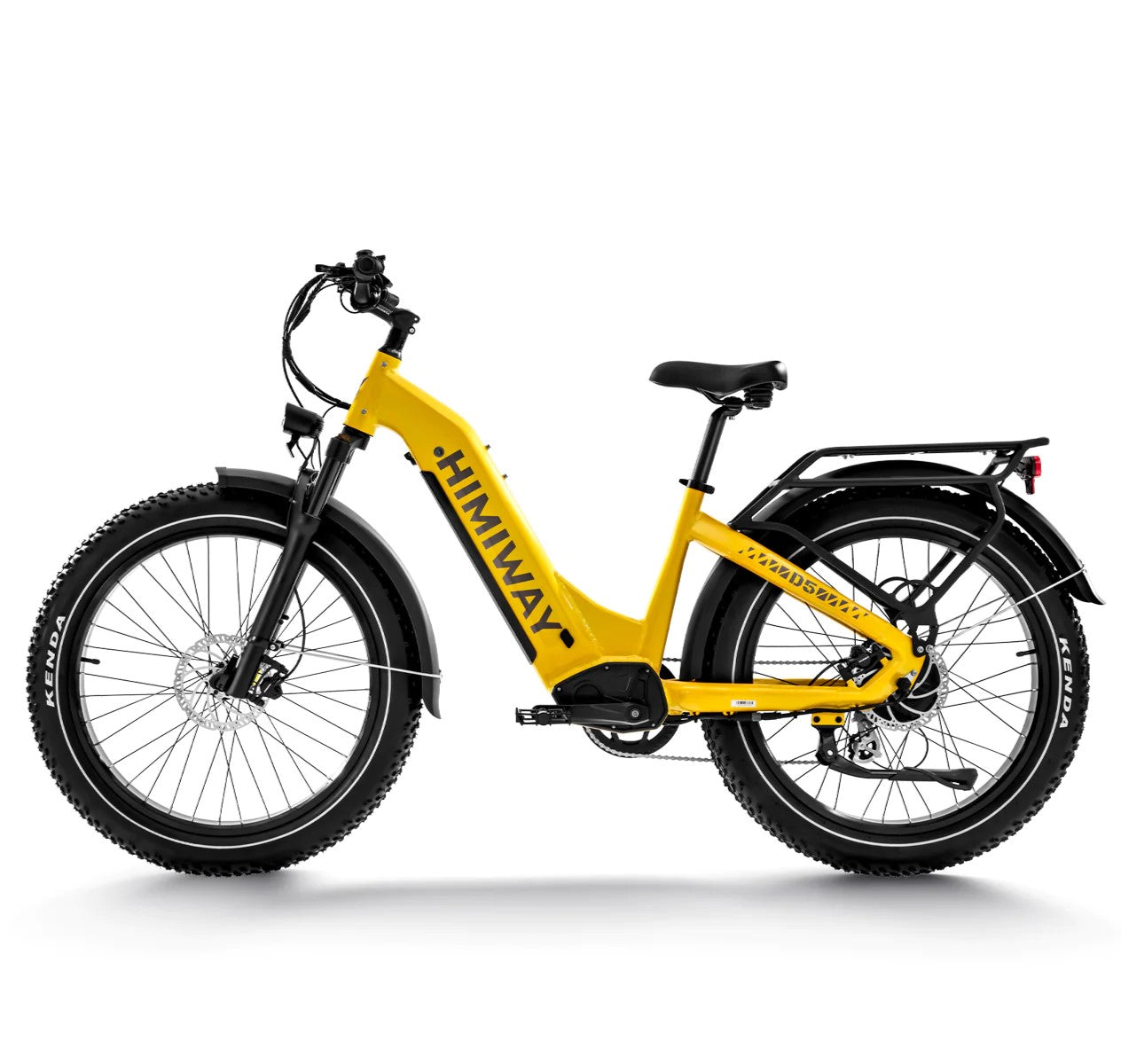

Himiway D5 Zebra 2024 Electric Bike

~ 250w engine power

~ 48v, 20ah battery

~ 96-128km range

~ 7 speed Shimano gearing

~ 250W brushless hub motor

~ 86m max torque

~ 48V 20Ah 960Wh Samsung/LG Battery

~ 7 hours to charge

~ 60-80+ miles (96-128km) per charge

~ Up to 15.5mph (25kph)

~ 7 speed Shimano gearing

~ Payload max 180kg

~ 0-5 level pedal assist

~ LCD display: battery, odometer, assist level, speedo, USB charging, wattmeter

~ 26"x4" Kenda fat tyres

~ Hydraulic disc brakes

~ Front suspension: 80mm travel, preload adjustment and lockout

~ 48V luminosity spotlight is 20% brighter than LED headlight (rear light also)

~ Selle comfort saddle

~ Twist throttle (limited to 4mph - contact us for more info)

~ Rear rack

Battery
48V | 20Ah | 960 Wh Lithium battery

Charger
3 amp smart charger

Charge time
7 hours

Controller
Intelligent controller 48V / 13A

Display
Backlit LCD with charge indicator, speedometer, odometer, pedal assist level, wattmeter, USB charging

Lights
48V luminosity spotlight is 20% brighter than LED headlight (rear light also)

Pedal Assist
Intelligent 5-level pedal assist

Range
80+ miles
*Range achieved varies depending on rider weight, terrain, and bicycle payload.

Brakes
Tektro 180mm hydraulic brakes

Chain
KMC chain

Crank Set
46T*170MM 4-jaw L/R forged alloy

Gears
Shimano- 14-28T BROWN/BK

Mudguards
Front and rear

Fork
Suspension Fork with lockout and adjustment

Frame
6061 Aluminum alloy

Freewheel
7 speed freewheel Shimano

Throttle
Half twist throttle (limited to 4mph - contact us for more info)

Brake Lever
Aluminium alloy comfort grip levers with motor cutoff switch

Kickstand
Heavy-duty aluminium

Pedals
Forged aluminum platform with reflectors

Racks
Rear rack included

Rims
Double-wall

Saddle
Selle comfort saddle

Stem
Promax MA-400 SSABK

Seat Post
30.9*300mm Alloy Seat post

Spokes
13 Gauge on the front / 12 Gauge on the back

Tyres
26" x 4" Kenda fat tyres

Recommended Rider Heights
5'3" - 6'5"

5'1" - 6'5" for step through (ST)

Bike Dimensions
~ Total Length 78.7"
~ Handlebar Height 42.3" (43" ST)
~ Wheelbase 49.2"
~ Minimum Seat Height 27.6"
~ Maximum Seat Height 35.4"
~ Chain Stay Length 18.9"
~ Standover Height 31.5" (22.8" ST)
~ Top Tube Length 23.6"
~ Wheel Diameter 28.7"
~ Head Tube Length 5.5"
~ Handlebar Length 27.6"
